DT Battery Holster

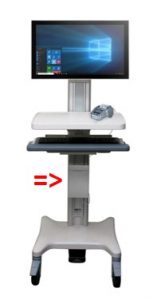

Make Rounds or Nursing Trolleys Electrically Mobile in No Time

How do I get power to my proven rounds and nursing trolleys – easily, cost-effectively and with replaceable batteries, even for continuous operation? These questions are familiar to you, then let’s take a look at this product:

The 3-way battery pack (ACC-001-36) in a holster is a compact, mobile low-voltage battery management system with one 12V, 15V and 19V output each for normal coaxial plugs. A cable with 3 LEDs, which is flexible in terms of its length, indicates the charge status of the packs and can be positioned so that it can be seen at any time. Due to the three existing voltages, different devices such as label printers, barcode readers and the like can be supplied with power in no time. For example, a label printer and measuring devices can be easily connected to an AIO PC like the DT524. The batteries are charged externally – up to six batteries simultaneously in four hours.

Techn. Spezifikationen

Brand
DT Research
Product
DT Battery Holster
Sonstige Features
Incl. cable for 1x 2.5mm for 12V, 1x 1.35mm for 15V and 1x 1.7mm coaxial connector. One flexible cable battery LED charge indicator. 3 battery slots with lock for 3x Dr202 Li-Ion batteries, 11.1V, 8.250 mAH (The warranty for products / batteries subject to wear is 6 months) IMPORTANT: max. output power at: 1x 12V - 4.16A / 1x 15V - 1A / 1x 19V - 3.16A Power supply for multiple peripherals Aluminum and ABS plastic case Dimensions: 7.3 x 3.6 x 4.7 in/ 185 x 92.6 x 120 mm Weight: 2.14 kg (with bracket) Approvals: FCC Class B, CE, C-Tick, RCM, MEPS, RoHS ko Temperature: Operating: 0°C - 40°C; Storage: -20°C - 6 Humidity: 0% - 90% non-condensing
Operating Temperature
-10 / 40°C
Certifications
CE, ETL, FCC Class A, RoHS
