DT58x: AIO-PC with Batteries

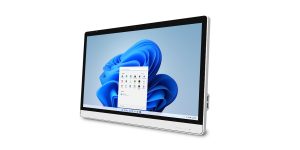

Medical AiO-PC with Three Slide-In Battery Packs

The DT582 / 584 is the successor to the tried-and-tested DT592 / 594 cart PC, which has been used thousands of times. The new model has three slide-in batteries that provide a runtime of approximately 16 hours. The enclosure is even thinner and lighter, making the cart easier to handle. A new feature is the reading light integrated on the lower edge.
Another highlight: the optional integrated power outputs with 12, 15 and 19 volts for supplying power to label printers, barcode readers or comparable devices.
The DT582 with 22″ display and the DT584 with 24″ display meet the standards for medical devices EN60601-1 and EN60601-1-2, are resistant to cleaning agents and have an antimicrobial coating.

Highlights:

  • Three hot-swappable batteries
  • LED night light
  • Front panel IP65 protected / housing: IPX2 protection
  • IEC 60601-1 / IEC 60601-1-2

Options:

  • Power supply outputs ( 12, 19, 24 volts)
  • Front camera
  • NFC/RFID reader
  • Smart Card/CAC reader

More Medical All-in-One PCs & Monitors >>

Discover CONCEPT’s Main Page >>

Technical specifications

Brand
DT Research
Product
DT582 / DT584
Operating system
Microsoft Windows 10 IoT, Ubuntu-Linux
CPU Family
Intel 10th Gen. (Comet Lake)
CPU Assembly
Intel i5
vPRO available
No
Fan
No
RAM Assembly
8GB - 64GB
ROM/SSD
256 GB to 4 TB GB SSD
SIM-Card Slot
No
Connections external
4 x USB 3.0, 2x USB 2.0 2x COM port 2x HDMI-out (1.4a) 1x audio jack 1x RJ45 port for Ethernet 1x DC-in
Audio Connections
1x Audio-out
Display Connections
1x HDMI-out
Display Size/Resolution
DT582: 21.5" Standard Display | DT584: 23.8" Antiglare Touchscreen
Resolution
1920 x 1080 FullHD, Optional: 3840 x 2160 - 4K/UHD
Touch screen
capacitive
Other features
3x DR202 Li-Ion 90W batteries running time approx. 16 hours changeable during operation
Options
Smart card reader (ISO 7816) Optional: NFC/RFID reader Charger for 6x battery
Dimensions
DT582: 345.9 x 516.9 x 40.4mm / DT584: 370.9 x 564.3 x 41.2 mm
Weight (kg)
DT582: 7.2 kg / DT584: 7.9 kg with 3 batteries
Operating Temperature
0°C – 40°C; Lager: -20°C – 60°C
Humidity
0% – 90% non condensing
Enclosure
Waterproof housing: IPX2 / Display: IP65 / VESA-compliant mounting 100mm × 100mm
Colours
White
Power Consumption
AC / DC adapter input: 100 - 240V
Certifications
FCC/IC, CE/CB, RCM, CCC, ANSI/AAMI ES60601-1
